 Electrola Cocktail Bar Radiogram
« Back · 1 · 2 · 3 · 4 · 5 · 6 · Next »
 Return to top of page · Post #: 1 · Written at 5:16:28 PM on 12 December 2022.
Benccoz's Gravatar
 Location: TUMBI UMBI, NSW
 Member since 14 November 2022
 Member #: 2525
 Postcount: 42

Hi all,

I have got hold of a;

Electrola Cocktail Bar Radiogram

Manufactured in Australia by Anderson, Eric, Radio and Television Pty. Ltd.

Here is a link https://www.radiomuseum.org/r/anderson_electrola_cocktail_bar_radiogram.html.

I have been looking for a circuit diagram but can't seem to find anything. would anyone happen to have a copy or know where I can obtain one. I'm happy to purchase it if available.

I am surprised there is so little information out there, as it was an Australian manufacturer which existed up to the 70's.

Many thanks,
Ben.



 Return to top of page · Post #: 2 · Written at 6:36:08 PM on 12 December 2022.
Johnny's avatar
 Location: Hobart, TAS
 Member since 31 July 2016
 Member #: 1959
 Postcount: 544

G'Day Ben, can't help with a circuit but can assure you that given a valve lineup there are plenty of people on this forum that can get it going/repair/restore this radio gram.
Lots of this type of electronics were built by various furniture makers with borrowed/copied internal parts from aus makers.
And by the many retail chains of the time.
JJ



 Return to top of page · Post #: 3 · Written at 7:50:40 PM on 12 December 2022.
Benccoz's Gravatar
 Location: TUMBI UMBI, NSW
 Member since 14 November 2022
 Member #: 2525
 Postcount: 42

Hi Johnny,

Thanks for your reply, I thought the layout looked fairly conventional. I plan to restore it myself. It is a very clean example and looks pretty much original, I'm thinking it may have never been repaired in the past. The valve line up is, 5Y3GT, 6M5, 6N8, 6N8 and 6AN7 plus a magic eye. If it's not too much trouble, could you please suggest a brand/model that has a similar line up?

Many thanks for your help,
Ben.



 Return to top of page · Post #: 4 · Written at 8:37:13 PM on 12 December 2022.
GTC's avatar
 GTC
 Location: Sydney, NSW
 Member since 28 January 2011
 Member #: 823
 Postcount: 6687

Eric Anderson was a retail electrical goods chain, which was wound up in the mid 1980s. They were also in radio and TV rental.

https://pbs.twimg.com/media/EW2AJAnUwAIab6h?format=jpg&name=small

Their radios and radiograms were made for them by local manufacturers.

Using your given valve line-up, I cannot find an exact match in the usual places.



 Return to top of page · Post #: 5 · Written at 8:53:22 PM on 12 December 2022.
Benccoz's Gravatar
 Location: TUMBI UMBI, NSW
 Member since 14 November 2022
 Member #: 2525
 Postcount: 42

Hi GTC,

Thankyou for your reply, that explains the lack of information available. I will now stop wasting time looking for a circuit and get on with restoring it.

Thanks,
Ben.



 Return to top of page · Post #: 6 · Written at 12:28:48 AM on 13 December 2022.
Marcc's avatar
 Location: Wangaratta, VIC
 Member since 21 February 2009
 Member #: 438
 Postcount: 5254

A photo of the chassis may be of use. HMV was the most prolific user of 6M5 and using two 6N8's, but 6V4 was the common rectifier.

I recently worked on a 42-71 (chassis 42) and that had that line of tubes but 6V4.



 Return to top of page · Post #: 7 · Written at 8:02:57 AM on 13 December 2022.
Tallar Carl's avatar
 Location: Latham, ACT
 Member since 21 February 2015
 Member #: 1705
 Postcount: 2155

Thankfully my memory is fully functional. Eric Anderson formerly owned Reliance Radio to whom my good friend in Canberra ( Ray Pfister ) was their service technician. They are high quality units. They actually released a 36 valve radio gram complete with FM and recording facilities in the late 40s early 50s.
I remember Ray Mentioning Erics name in many of our conversations .
Schematics for reliance are like rocking horse poo. Look at this link.

https://www.radiomuseum.org/dsp_hersteller_detail.cfm?company_id=19433



 Return to top of page · Post #: 8 · Written at 8:10:35 AM on 13 December 2022.
Benccoz's Gravatar
 Location: TUMBI UMBI, NSW
 Member since 14 November 2022
 Member #: 2525
 Postcount: 42

Hi Marcc,

Thanks for your help. I have submitted a couple of photos of the chassis, just waiting for approval from the webmaster.

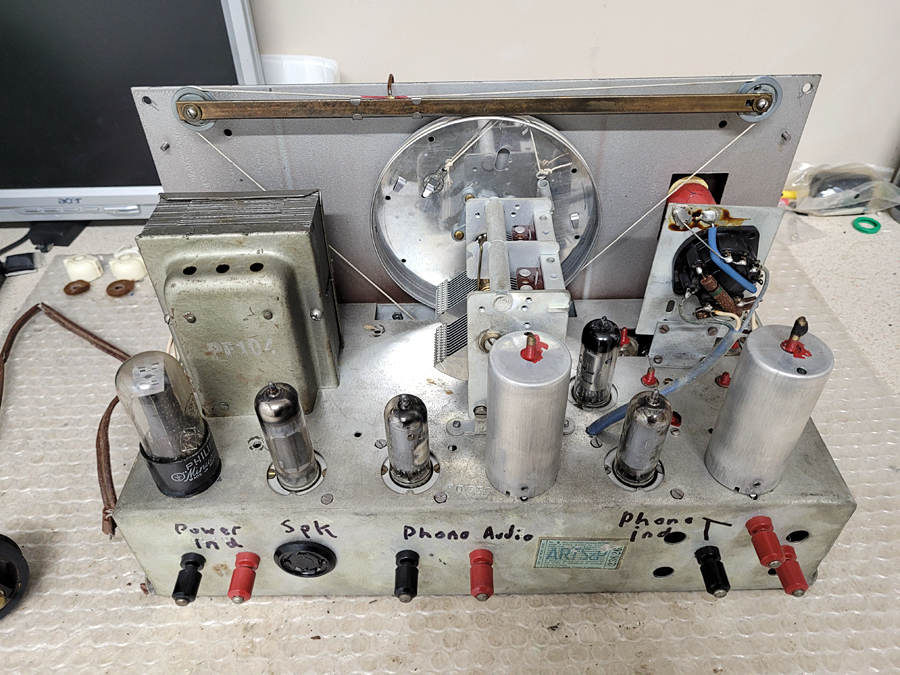

Electrola valve radio chassis

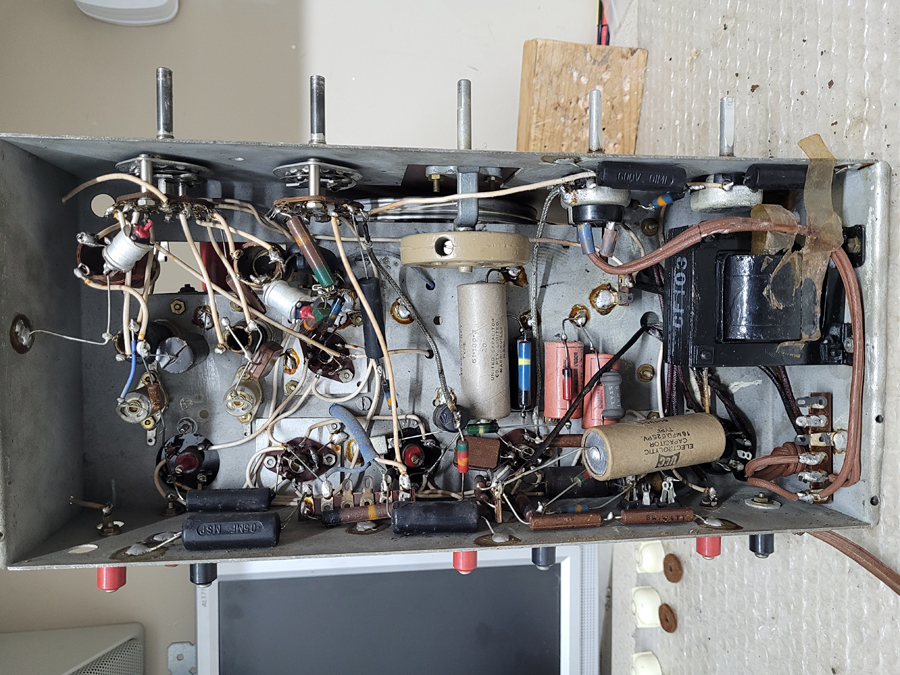

Electrola valve radio chassis
