 PhilipsType RP-60
« Back · 1 · Next »
 Return to top of page · Post #: 1 · Written at 8:53:53 PM on 5 February 2025.
Marcc's avatar
 Marcc
 Location: Wangaratta, VIC
 Member since 21 February 2009
 Member #: 438
 Postcount: 5498

This was apparently standard in many Holdens like HQ. I have yet to find any decent info on it. Like circuit & wiring colours.

The main reason it looks like it won't go (customer) is the aerial socket is shorted.

 Return to top of page · Post #: 2 · Written at 9:40:39 PM on 5 February 2025.
GTC's avatar
 GTC
 Location: Sydney, NSW
 Member since 28 January 2011
 Member #: 823
 Postcount: 6836

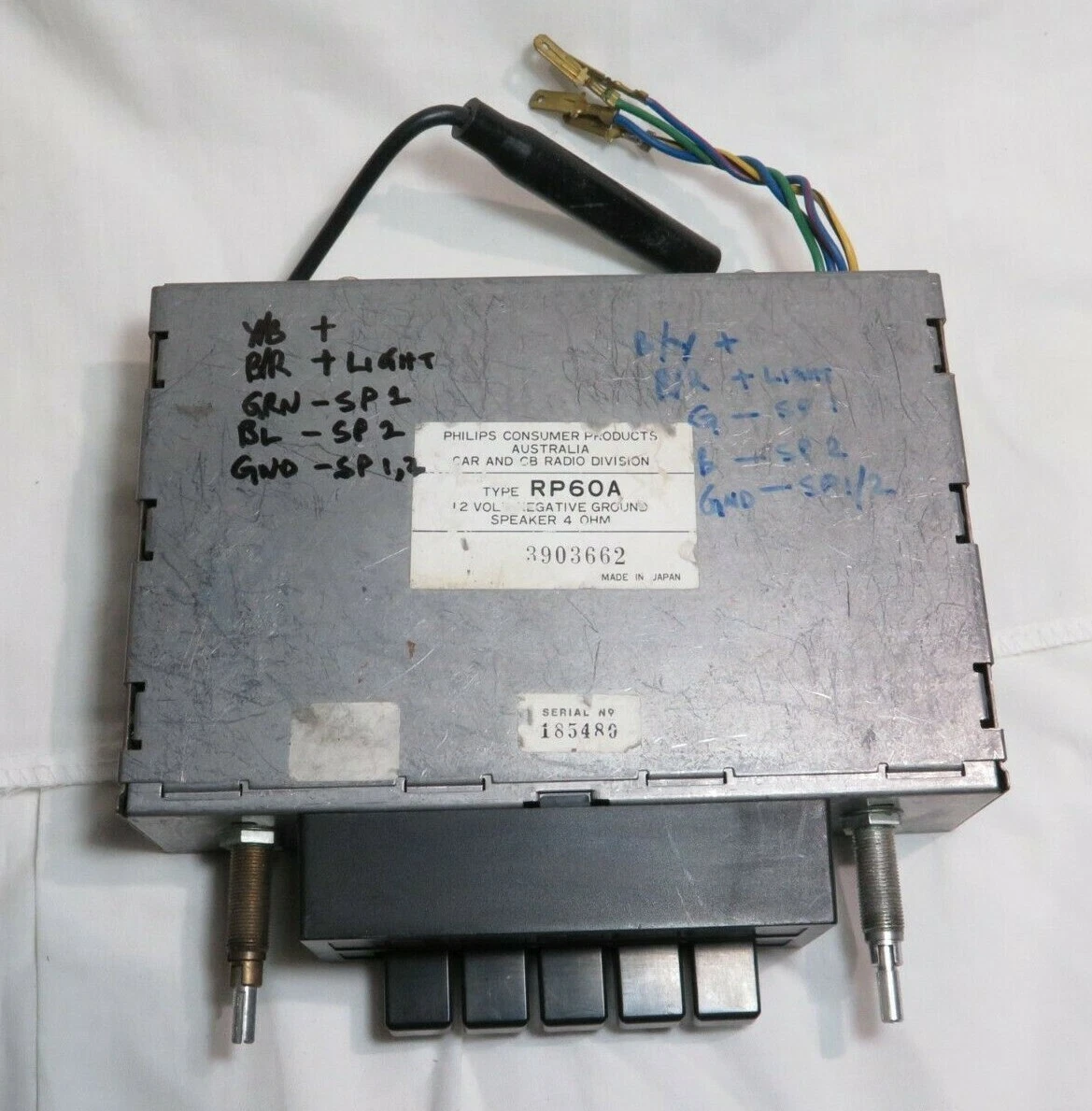

Colours of connecting wires mentioned here:

https://i.ebayimg.com/images/g/6SsAAOSw6ahhnb~o/s-l1600.webp

 Return to top of page · Post #: 3 · Written at 10:50:01 PM on 5 February 2025.
Marcc's avatar
 Marcc
 Location: Wangaratta, VIC
 Member since 21 February 2009
 Member #: 438
 Postcount: 5498

Thanks

That will save blowing it up. Wires have been cut of to around 40mm. So I can now add a couple of speaker &see what happens?

 Return to top of page · Post #: 4 · Written at 10:50:44 PM on 5 February 2025.
MonochromeTV's avatar
 MonochromeTV
 Location: Melbourne, VIC
 Member since 20 September 2011
 Member #: 1009
 Postcount: 1235

https://www.kevinchant.com/uploads/7/1/0/8/7108231/rp60a.pdf

 Return to top of page · Post #: 5 · Written at 8:40:04 PM on 6 February 2025.
Brad's avatar
 Brad
 Administrator
 Location: Naremburn, NSW
 Member since 15 November 2005
 Member #: 1
 Postcount: 7483

The early Commodores had the same radio.


‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾
A valve a day keeps the transistor away...
